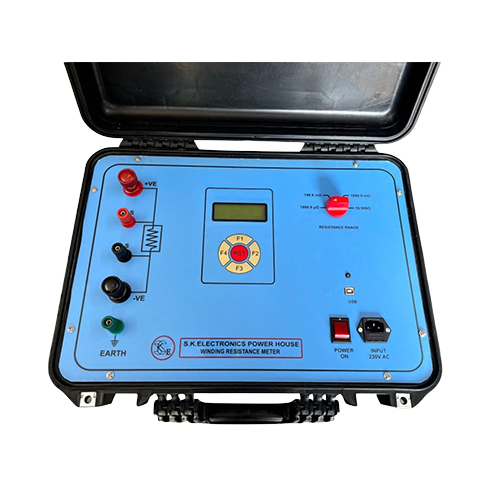

Winding Resistance Meter

About Winding Resistance Meter

TECHNICAL SPECIFICATIONS:

Power Switch           : ON / OFF control

Keyboard                  : For easy Test operation

USB Port                   : For PC connection and Excel report generation

Display                      : 20-4 Digital LCD

OUTPUT                    : 12V / 10A DC (CVCC Type)

Output Termination  : On the top of the front panel

FEATURES:

•  Fully digital, microprocessor-based design
•  Measures across 4 ranges: 1999.9 u , 199.99 mili  ,1999.9 mili  , 19.999
•  Four wire measurement systems
•  Displays actual current mV drop and resistance value
•  Accuracy: +/- 0.1%
•  Auto reading within 5 seconds
•  Overload protection & auto discharge
•  Provided crocodile clamps, 10 meter long output wire
•  Data storage and recall function
•  USB Port for report generation
•  Induction-protected  safe for live switchyard use
•  Compact industrial case, weight 10kg  easy to carry
