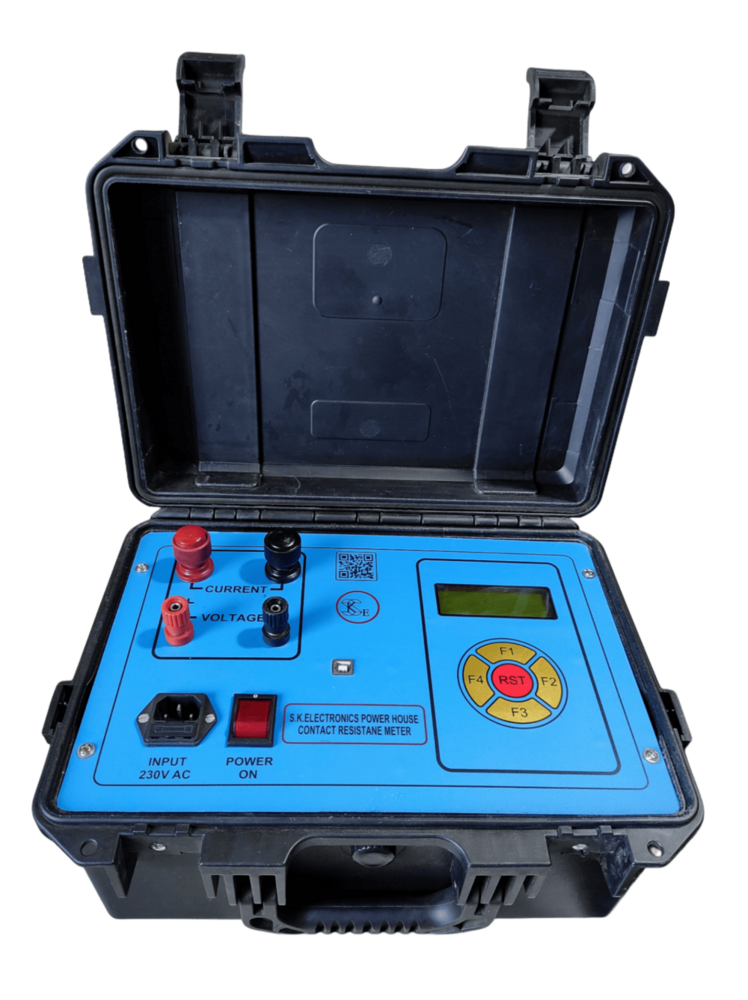

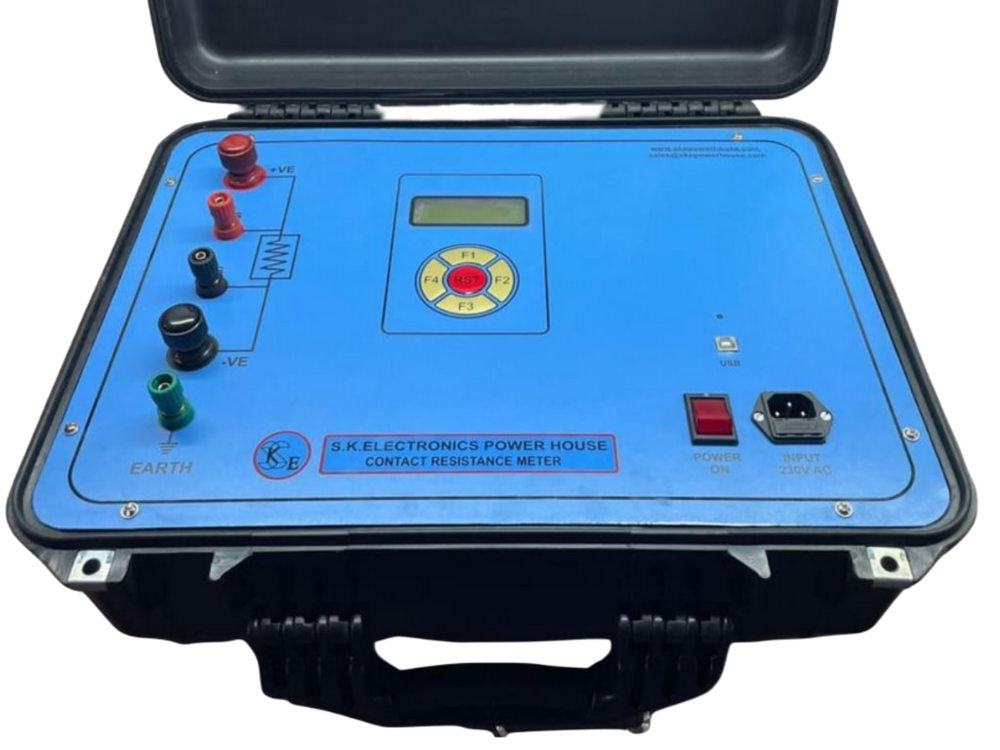

SKE-CRM 100A Contact Resistance Meter

SKE-CRM 100A Contact Resistance Meter Specification

Resistant Feature
Shock and impact-resistant body

Batteries Type
Internal rechargeable battery

Usage & Applications
Testing contact resistance of circuit breakers, switches, and busbar joints

Accuracy
±(0.5% reading + 2 digits)

Product Type
Contact Resistance Meter

Material
Industrial-grade plastic and metal

Measuring Voltage Range
DC 100A output current, voltage drop measurement

Operating Temperature
0°C to 40°C

Frequency (MHz)
DC Operation (No frequency applied)

Insulation Box
Yes, robust insulated enclosure

Protection System
Overload and Short-circuit protection

Size
Handheld

Color
Blue & White

Dimension (L*W*H)
340 mm x 290 mm x 130 mm

Weight
3.9 kg

SKE-CRM 100A Contact Resistance Meter Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About SKE-CRM 100A Contact Resistance Meter

Experience the prodigious precision of the SKE-CRM 100A Contact Resistance Meter, a top-rated, value-driven solution built for those who demand majestic performance. Its large digital LCD display, robust insulated enclosure, and shock-resistant body guarantee reliable readings even in demanding environments. Test currents up to 100A DC deliver glorious accuracy down to 0.1 , ensuring dependable results in under 10 seconds. Factory calibrated and compliant with IEC 61010, this affordable handheld device supports USB data output, user-configurable test times, and seamless onsite calibrationmaking it an indispensable tool for professionals involved with circuit breakers, switches, and busbar joints.

Effortless Operation and Versatile Application

The SKE-CRM 100A is remarkably intuitive: connect the robust leads, configure the test time on the majestic LCD display, and commence testing. Its directional usage suits both laboratory and onsite fieldwork, especially in substations or switchyards. This meters competitive advantages include rapid test cycles, prodigious resolution levels, and advanced data handling features, positioning it as a top-rated solution for industrial and electrical maintenance professionals.

Reliable Export Markets, Packaging, and Quick Dispatch

The SKE-CRM 100A enjoys broad exportation to various markets, featuring sturdy packaging that ensures goods transport safety. Quick dispatching is prioritized from major Indian FOB ports, enabling rapid delivery across continents. Each unit is carefully boxed to minimize impact, maintaining the meters glorious durability. With streamlined shipping logistics, customers can trust in prompt, efficient service from supplier to user location.

Model Number/Name	SKE - CRM - 100A
Brand	SKE
Input Voltage	230V AC 50Hz Single Phase
Measures	0.1 micro ohm to 1999.9 micro ohm
Resolution	0.1
Output Voltage	5V
Output Current	100 Amp (CVCC Type)
Weight	4Kg

FAQs of SKE-CRM 100A Contact Resistance Meter:

Q: How is the SKE-CRM 100A Contact Resistance Meter operated for resistance measurement?

A: To operate the meter, connect the provided 2-meter leads to the component under test, set your desired test time, and initiate testing via the user-friendly interface. The results display within seconds on the large digital LCD screen.

Q: What areas of application are ideal for the SKE-CRM 100A?

A: This meter is tailored for measuring the contact resistance of circuit breakers, switches, and busbar joints, making it invaluable for substation maintenance, panel testing, and quality assurance inspections in diverse electrical environments.

Q: Where can on-site calibration be performed for this instrument?

A: On-site calibration is fully supported by the SKE-CRM 100A, allowing maintenance teams or certified professionals to calibrate it directly at their facility or project location for uninterrupted field reliability.

Q: What safety standards and protections does the device comply with?

A: The SKE-CRM 100A complies with IEC 61010 safety standards. It features overload and short-circuit protection, as well as a resilient, shock-resistant enclosure, ensuring robust performance even in challenging conditions.

Q: How are test results stored and accessed?

A: Test results are stored internally and can be conveniently transferred to a computer or external device using the USB output, facilitating record-keeping and analysis.
